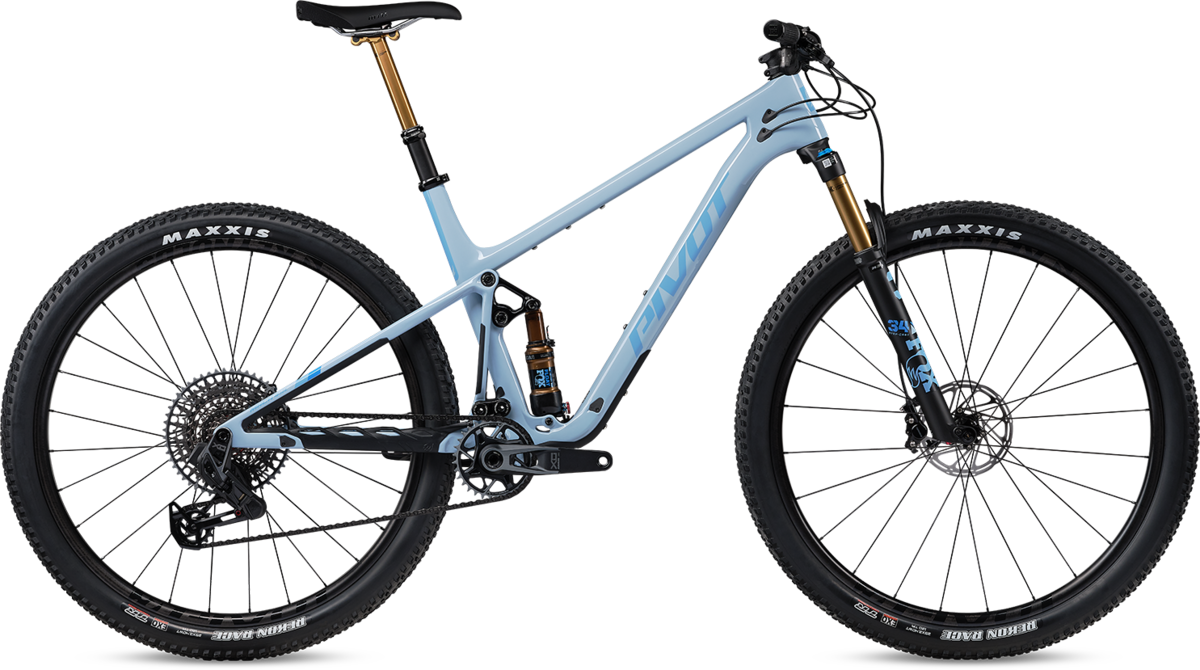

Pivot Cycles Mach 4 SL Pro X0 Eagle Transmission (Carbon Wheels)

Pivot Cycles Mach 4 SL Pro X0 Eagle Transmission (Carbon Wheels)
  • Color: Ice Blue
  • Color: Seafoam Green
$7,999.99 - $9,699.00
$9,699.00
Color:
Size: Select size
Please select options Unavailable
This product is not available for online purchase. Please call us or visit our store.

Details

UNCOMPROMISING PERFORMANCE
The all-new Mach 4 SL; a podium seeking missile crafted from the ground up as a testament to speed without compromise. designed to win gold and slaughter KOMs, and do so while delivering an otherworldly ride quality, telepathic handling, and a potent blend of acceleration and tractability.

MORE FUN
Not every day is race day. Sometimes our best races are with ourselves, racing itself should have some fun thrown in to buffer the suffering, the Mach 4 SL is as versatile as it is speedy. The World Cup build yields 95mm or 103mm of rear travel, easily adjusted via flip chip. The Trail build, aimed at squeezing as much fun as humanly possible while delivering either 106 or 115mm of rear travel via the Fox Float rear shock.

- XC-Tuned DW-Link™ Suspension
- New XC Adapted Travel-Adjustable Flip-Chip
- Efficient Fox Factory Float DPS Shock on World Cup Builds with 95mm or 103mm Adjustable Travel
- Versatile Fox Factory or Performance Float Shock Options on XC builds with 106mm or 115mm Adjustable Travel
- Lighter, More Durable High-Load Enduro Max bearings
- Size-Specific Carbon Layup Across Size Range
- Low Standover Fits Riders 4'10" to 6' 7"
- Large Water Bottle Clearance on All Sizes
- Pivot's full carbon frames feature size-specific ride tuning, leading edge carbon fiber materials, and Pivot's proprietary hollow core molding technology to ensure that every rider from 4'10" to 6'7" has a bike that feels perfect and performs at the optimum level for their size.
- Injection Molded Rubberized Frame Protection
- Full Internal Routing with Pivot Cable Port System
- Pivot Dock Tool System Compatible Under Top Tube and BB
- Simplified Twistloc Suspension Lockout

Geometry and sizing

Sizes:
SIZEX-SmallSmallMediumLargeX-Large
A-Seat Tube Length 35.5 cm 39.4 cm 41.9 cm 46.0 cm 50.5 cm
B-Top Tube Length 56.8 cm 58.4 cm 61.3 cm 64.2 cm 66.5 cm
C-Head Tube Length 8.5 cm 9.0 cm 10.5 cm 12.0 cm 13.5 cm
D-Head Tube Angle 66.7° 66.7° 66.7° 66.7° 66.7°
E-Seat Tube Angle (Eff.) 74.7° 74.7° 74.7° 74.7° 74.7°
F-Chainstay Length 43.2 cm 43.2 cm 43.2 cm 43.2 cm 43.2 cm
G-Bottom Bracket Height 33.6 cm 33.6 cm 33.6 cm 33.6 cm 33.6 cm
H-Bottom Bracket Drop 3.8 cm 3.6 cm 3.6 cm 3.6 cm 3.6 cm
I-Standover 64.6 cm 65.6 cm 68.4 cm 67.9 cm 70.9 cm
Wheelbase 111.1 cm 112.8 cm 115.9 cm 118.9 cm 121.5 cm
Reach 39.7 cm 41.2 cm 43.7 cm 46.2 cm 48.2 cm
Stack 58.6 cm 58.9 cm 60.3 cm 61.7 cm 63.1 cm
Sizes:
SIZEX-SmallSmallMediumLargeX-Large
Rider Height (In) 4'10" - 5'4" 5'4" - 5'8" 5'8" - 5'11" 5'11"-6'2" 6'2" - 6'7"

Videos

Part Numbers

Option UPC MPN Store SKU
Ice Blue / X-Small 196338106405 004SLV329CXOB--BICXSDRPGN
Ice Blue / Small 196338106368 004SLV329CXOB--BICSMDRPGN
Ice Blue / Large 196338106320 004SLV329CXOB--BICLGDRPGN
Ice Blue / Medium 196338106344 004SLV329CXOB--BICMDDRPGN 210000000274
Ice Blue / X-Large 196338106382 004SLV329CXOB--BICXLDRPGN
Seafoam Green / Small 196338106467 004SLV329CXOB--GSFSMDRPGN
Seafoam Green / X-Small 196338106504 004SLV329CXOB--GSFXSDRPGN
Seafoam Green / Medium 196338106443 004SLV329CXOB--GSFMDDRPGN
Seafoam Green / Large 196338106429 004SLV329CXOB--GSFLGDRPGN
Seafoam Green / X-Large 196338106481 004SLV329CXOB--GSFXLDRPGN
